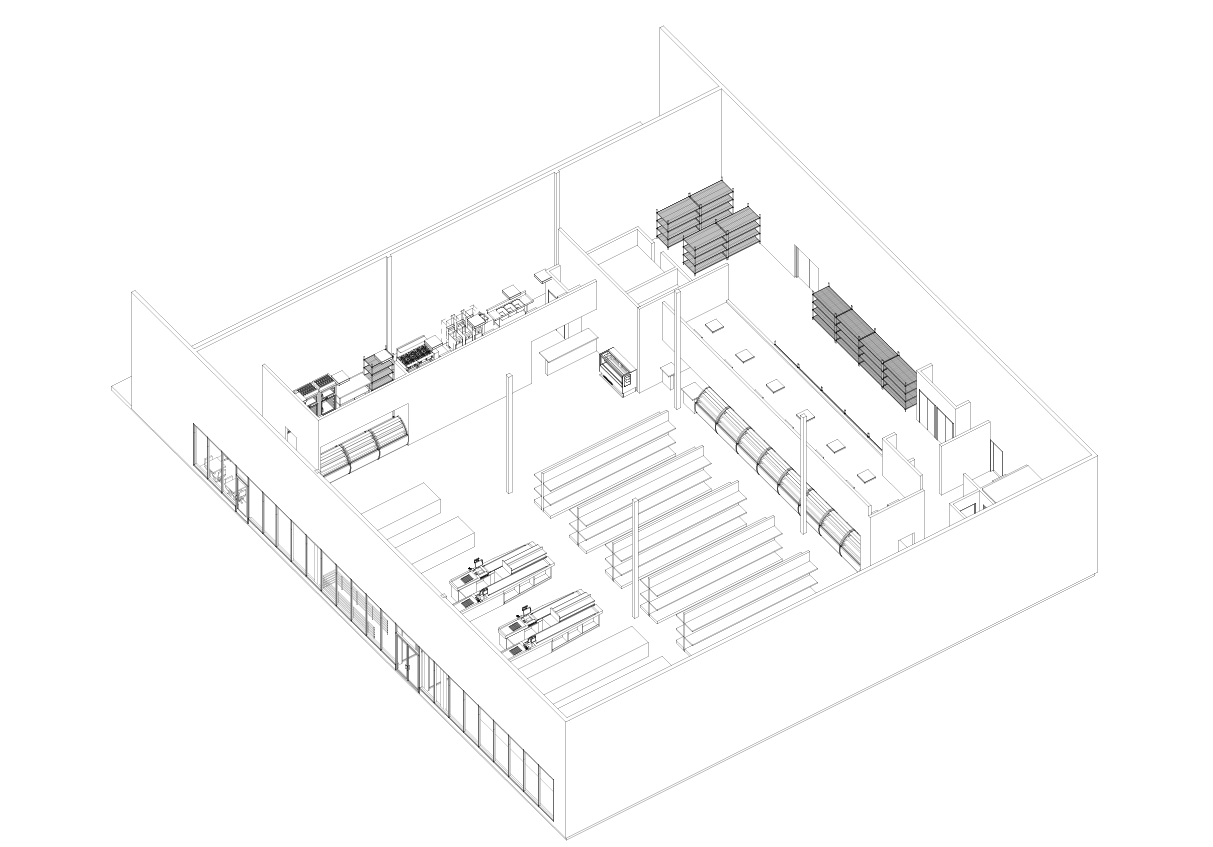

Union Rd. Store Build-Out — Axonometric
Professional  ·  Tommaso Briatico  ·  Buffalo, NY

Union Rd.
Store Build-Out

Location Buffalo, NY
Area 25,000 sq ft
Sector Retail · Commercial
Status Under Construction
Role SD · DD · CD

International Grocery Market Build-Out

Comprehensive architectural design and documentation for the interior build-out of an international grocery market within an existing commercial structure. The project focused on transforming a vacant retail space into a fully functional market environment integrating a full-service deli, produce area, bakery, and customer café seating. The scope covered every stage from conceptual space planning and layout optimization to detailed construction documentation and code compliance coordination.

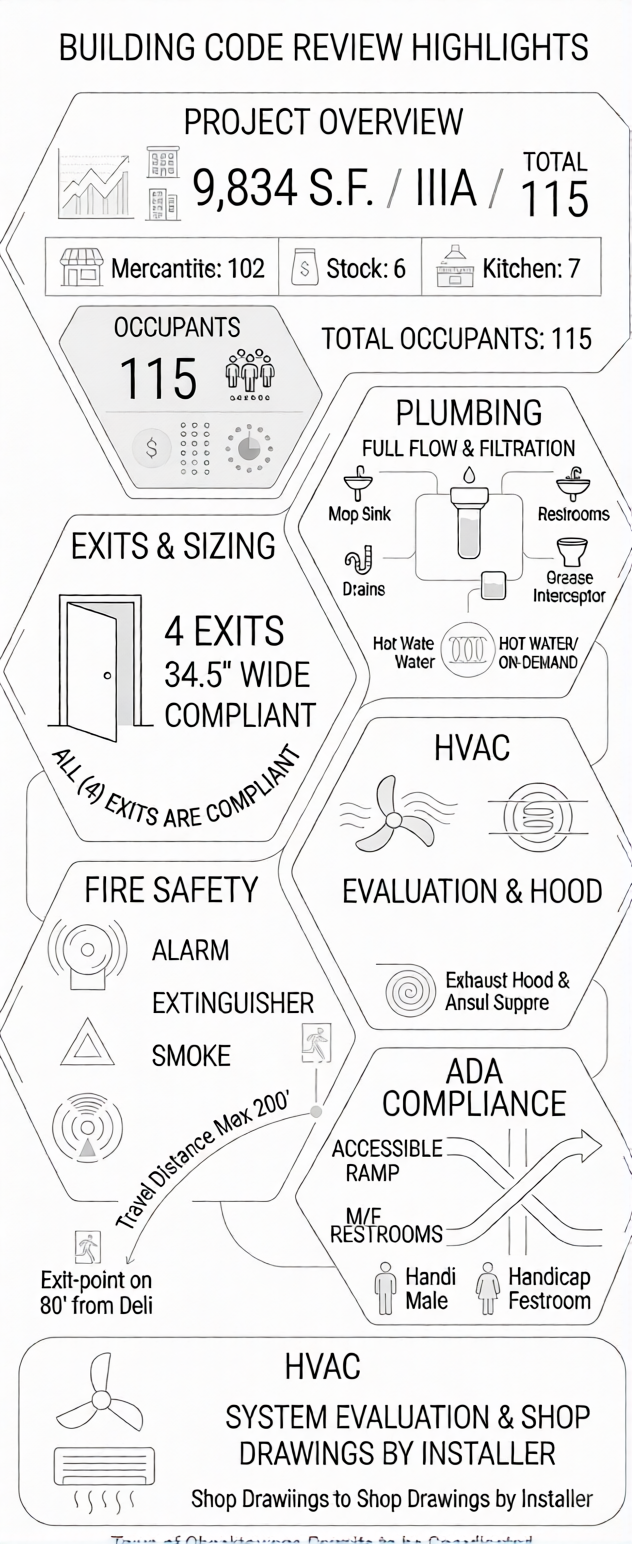

Code Research

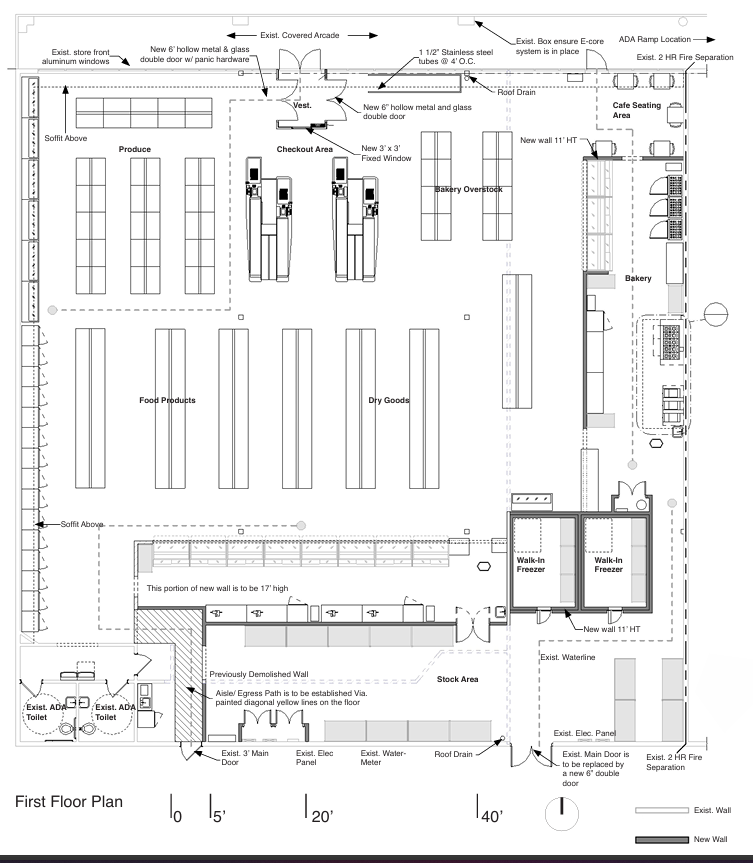

Floor Plan
Floor Plan

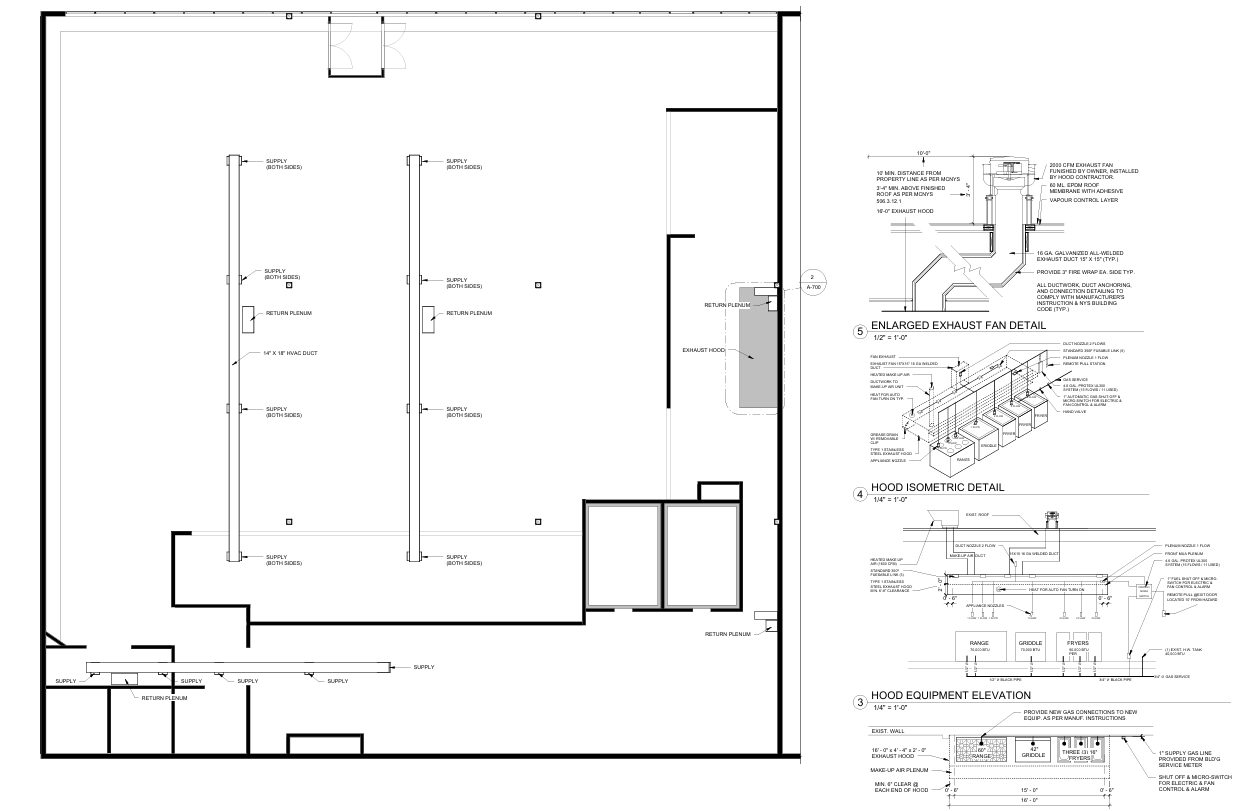

Mechanical
Mechanical

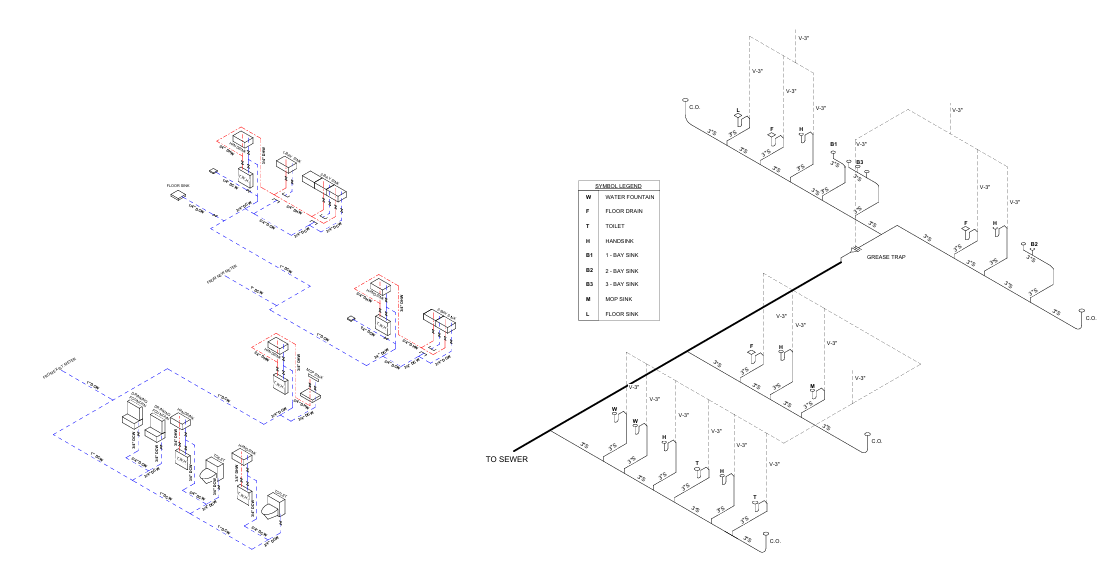

Plumbing Axonometric
Plumbing Axonometric

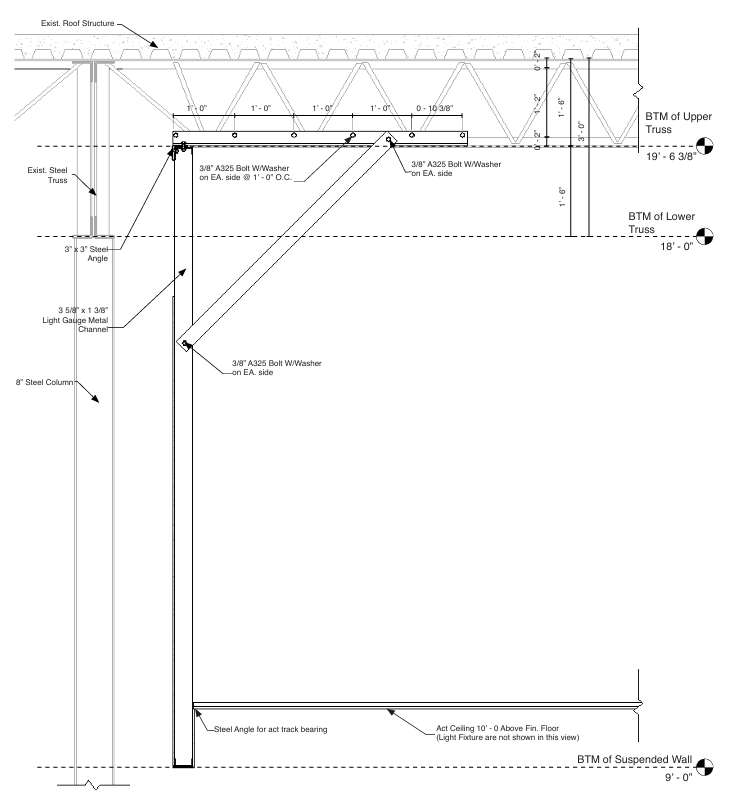

Section
Section

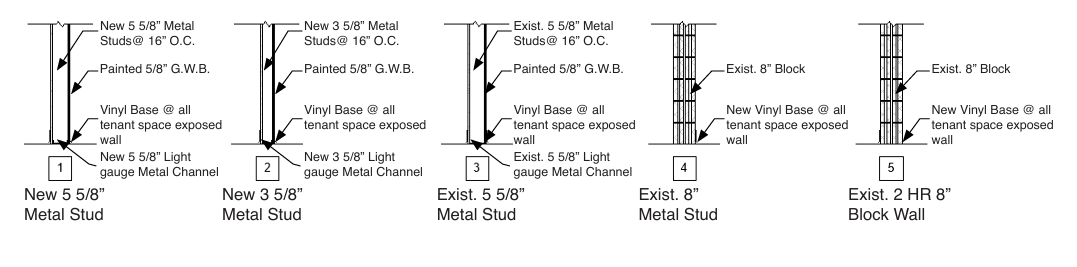

Wall Type
Wall Type

Scope of Work

Project Responsibilities

Full architectural services delivered across all phases of design — from schematic design through permit-ready construction documents.

01
Full Documentation
Complete set from SD through CD — floor plans, RCPs, fire safety layouts, and all associated drawing packages across every project phase.
02
Code Compliance
NYS Building Code (BCNYS) and ADA accessibility research and application, ensuring all design decisions met applicable municipal and state regulatory requirements.
03
HVAC & Plumbing
Coordination of mechanical, plumbing, and structural systems across all disciplines to ensure integrated and constructible building systems documentation.
04
Wall Sections
Detailed wall sections and equipment schedules developed to convey precise construction intent, material transitions, and installation requirements throughout the build-out.
05
Fire Safety
Occupancy load calculations, fixture counts, and egress route analysis ensuring full life safety compliance with BCNYS requirements.
06
Permit Submission
Final construction package submitted to the City Council of Buffalo for review, coordinating all required documentation for building permit approval.

"The design emphasized efficient circulation, user comfort, and clear zoning between customer and service areas while maintaining full accessibility. The final construction package was submitted for review and permitting to the City Council of Buffalo, ensuring alignment with all municipal and state regulatory requirements."
